How to Choose a Big Size Butterfly Valve?

Selecting a Big Size Butterfly Valve is not simply a matter of choosing the largest available diameter. Industrial projects demand careful attention to pressure, temperature, media, actuation, and maintenance access. A 1,200-millimeter valve may look suitable on a drawing, yet its disc clearance can restrict a nearby pump or elbow. Small design errors become expensive during installation.

Market evidence shows why this decision deserves structure. Grand View Research valued the global industrial valves market at approximately USD 78 billion in 2023, with continued growth expected through 2030. Fortune Business Insights also identifies water treatment, power generation, oil and gas, and chemical processing as important butterfly valve applications. However, published estimates differ by scope and methodology. That difference deserves attention.

Greg Johnson, a respected valve-industry educator and former United Valve executive, explains the core principle: “Valve selection starts with understanding the service, not the valve name.” This statement is highly relevant to Big Size Butterfly Valve selection. Engineers should confirm line size, operating pressure, shutoff requirements, flow direction, cavitation risk, and actuator torque. They should also check flange standards and local inspection requirements.

Experience matters here. A resilient-seated valve may suit moderate-pressure water service. A high-performance or triple-offset design may better support hotter, more demanding systems. Yet no design is universally best. The uncomfortable truth is simple: product brochures rarely reveal every field limitation. This guide examines practical selection criteria, common sizing mistakes, and evidence-based checks. It aims to support sound decisions, while recognizing that final approval belongs with qualified project engineers.

Table of Contents [Hide]

1 Define the Pipeline Requirements for a Large Butterfly Valve

2 Compare Valve Types, Materials, and Pressure Ratings

3 Select the Correct Valve Size and Connection Standard

4 Evaluate Actuation, Control, and Installation Requirements

5 Verify Safety, Maintenance, and Long-Term Operating Costs

Define the Pipeline Requirements for a Large Butterfly Valve

Choosing a big butterfly valve starts with the pipeline, not the valve catalog. Record the medium, temperature, pressure, flow range, pipe diameter, and installation orientation. The U.S. EPA’s 7th Drinking Water Infrastructure Needs Survey and Assessment estimates $625 billion in drinking water needs over 20 years. That scale makes accurate field data essential.

Check the line’s operating pressure and surge conditions. A valve rated for normal pressure may fail during pump startup or sudden closure. For water service, compare designs with AWWA C504 requirements. For industrial duties, review API 609 and the applicable pressure class. Specify the body material, disc material, shaft design, seat type, and corrosion allowance. Muddy water needs different protection than clean process water.

Actuation also deserves attention. Calculate torque from pressure, seat friction, packing resistance, and possible deposits. Then verify the actuator’s output across the full travel range. ISO 5211 helps standardize actuator mounting dimensions. The 2024 AWWA State of the Water Industry survey continues to identify aging infrastructure as a major sector concern. That warning feels practical. A valve can meet the datasheet and still be difficult to maintain in a cramped chamber. I have seen drawings ignore access space. That mistake becomes expensive after installation. Measure flange faces, lifting routes, drainage, and nearby equipment before approving the final size.

Compare Valve Types, Materials, and Pressure Ratings

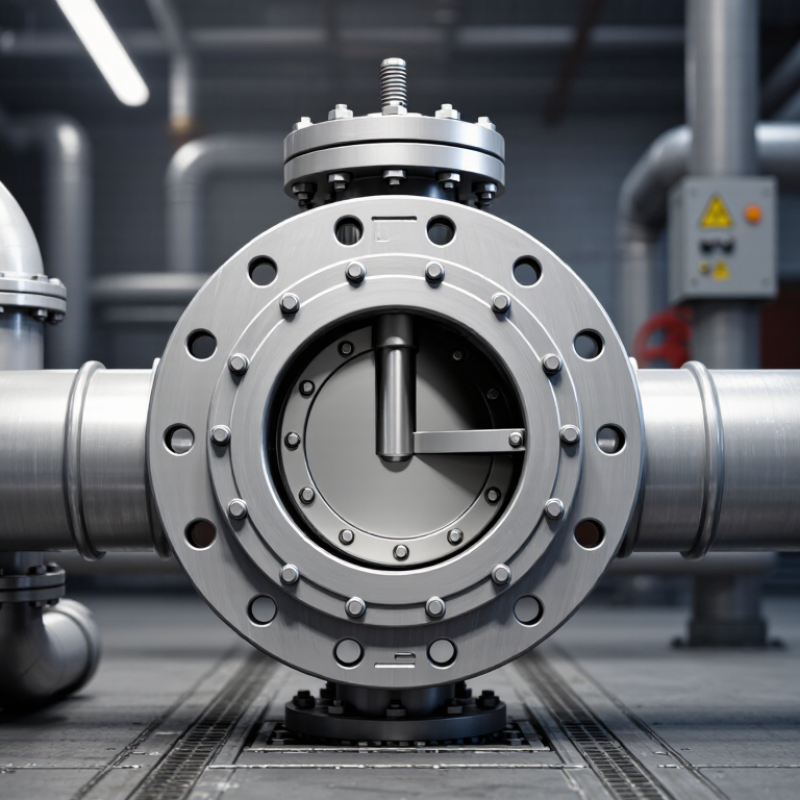

How to Choose a Big Size Butterfly Valve?

For large pipelines, compare the valve type before comparing prices. A wafer butterfly valve fits between flanges and saves space. A lug type allows one-sided removal, which helps during maintenance. Double-flanged valves suit heavier systems but require more installation room. High-performance and triple-offset designs reduce seat wear in demanding service. Do not choose by diameter alone. Flow direction, shutoff frequency, and actuator torque matter too.

Material selection should follow the fluid, temperature, and external environment. Ductile iron works well in many water systems and keeps weight manageable. Carbon steel handles stronger mechanical loads but needs corrosion protection. Stainless steel offers better resistance in aggressive or hygienic service. Seat materials also deserve attention. EPDM suits many water applications, while PTFE tolerates a wider chemical range. Compatibility must be verified, not assumed.

Pressure ratings can be misleading without temperature data. PN10, PN16, and Class 150 are not interchangeable labels. Check the valve rating, flange standard, pressure-temperature chart, and pipeline test pressure together. Large valves may need stronger shafts, larger actuators, and reliable position feedback. Measure the face-to-face length carefully. A small dimensional error can delay installation. In practice, I would recheck the highest pressure surge, because normal operating pressure is not the whole story.

Select the Correct Valve Size and Connection Standard

Choosing a big butterfly valve starts with the line, not the valve catalogue. Match the required flow, pressure, temperature, and fluid first. A DN600 pipe does not always need a DN600 valve. Oversizing can reduce controllability, while undersizing increases pressure loss and disc velocity. Fit matters. Measure twice.

Use the valve’s published flow coefficient, or Cv, to check the operating point. Then confirm the pressure class at the highest operating temperature. ASME B16.47 covers large flanges from NPS 26 through NPS 60, while ASME B16.5 generally covers smaller flange ranges. These dimensions are not interchangeable. A PN16 flange pattern will not automatically match an ASME Class 150 connection. Check bolt circles, bore size, gasket type, and flange facing before shipment.

Connection style also affects field risk. Wafer valves save space, but they depend on correctly aligned mating flanges. Lug-style valves support independent pipe removal and may suit maintenance-heavy systems. For face-to-face dimensions, ISO 5752 provides recognized dimensional series. API 609 also gives widely used requirements for resilient-seated and high-performance butterfly valves. In practice, I would verify the latest editions and the project specification together. Small errors multiply. A forgotten liner thickness or disc clearance can stop installation, even when the nominal size looks correct.

Evaluate Actuation, Control, and Installation Requirements

How to Choose a Big Size Butterfly Valve?

Evaluate Actuation, Control, and Installation Requirements

Selecting a big size butterfly valve starts with the pipeline, not the catalog. Record the pipe diameter, medium, pressure, temperature, and expected flow rate. A valve handling cooling water may need different materials from one handling abrasive slurry. Check the disc clearance carefully. A large disc can interfere with nearby elbows, pumps, or expansion joints.

Actuation deserves equal attention. Manual gear operation may suit occasional isolation, but frequent cycling usually requires pneumatic or electric actuation. Confirm the actuator’s torque exceeds the valve’s breakaway torque, especially after long idle periods. Add a position indicator for field verification.

For automatic control, review signal type, response speed, fail position, and available power. Do not select an actuator by valve size alone. That shortcut causes trouble.

Installation conditions often decide reliability. Leave enough space for actuator removal and bolt access. Support heavy valves and actuators independently when the pipe cannot carry their weight. Align the flanges accurately, and tighten bolts in a cross pattern. Even a strong valve can leak after poor alignment.

I have seen projects focus on pressure ratings while overlooking maintenance clearance. That was an expensive lesson. Test the valve through its full stroke before commissioning, then inspect for abnormal noise, vibration, or delayed movement. Field conditions are rarely perfect. Allow room for adjustment.

Verify Safety, Maintenance, and Long-Term Operating Costs

Choosing a big size butterfly valve starts with safety, not pipe diameter alone. Confirm the pressure class, temperature range, media compatibility, and maximum shutoff differential pressure. API Standard 609 provides dimensional and performance guidance for butterfly valves, while ISO 15848-1 addresses fugitive emissions testing. Ask for tested leakage data, not only a catalog rating. A heavy valve also needs proper pipe support. Uncontrolled weight can distort the body and damage the seat.

Maintenance access matters.

Check whether technicians can remove the actuator, inspect the shaft, and replace the seat without dismantling nearby piping. Specify position feedback and local manual override where isolation is critical.

Keep a record of cycles, torque trends, seat adjustments, and leakage observations. ISO 14224:2016 recommends structured equipment failure and maintenance data, which helps reveal recurring problems. In practice, many plants record repairs but not the operating conditions that caused them.

Long-term cost depends heavily on control strategy.

A valve that operates half-open for years may create unnecessary pressure loss and actuator wear. For compressed-air service, the U.S. Department of Energy’s Improving Compressed Air System Performance sourcebook reports that leaks can waste 20–30% of compressor output. That figure does not describe every butterfly valve, but it shows why small leakage deserves attention.

Compare actuator energy, inspection labor, spare-seat availability, and shutdown losses over the valve’s full service life. A cheaper purchase can become expensive after one difficult maintenance outage. The spreadsheet may still miss that.
