Bi-Directional Zero Leakage Resilient Seated Gate Valve

Resilient-Seated Gate Valve

Non-Rising Stem, brass nut type

product details

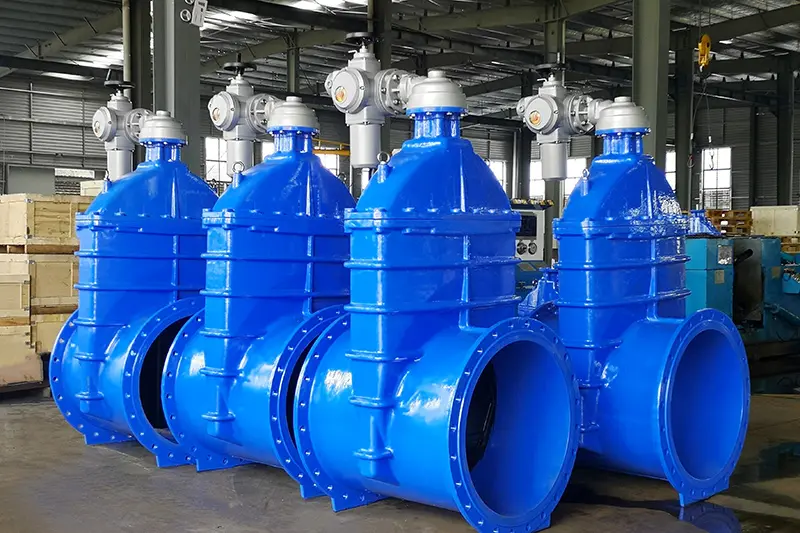

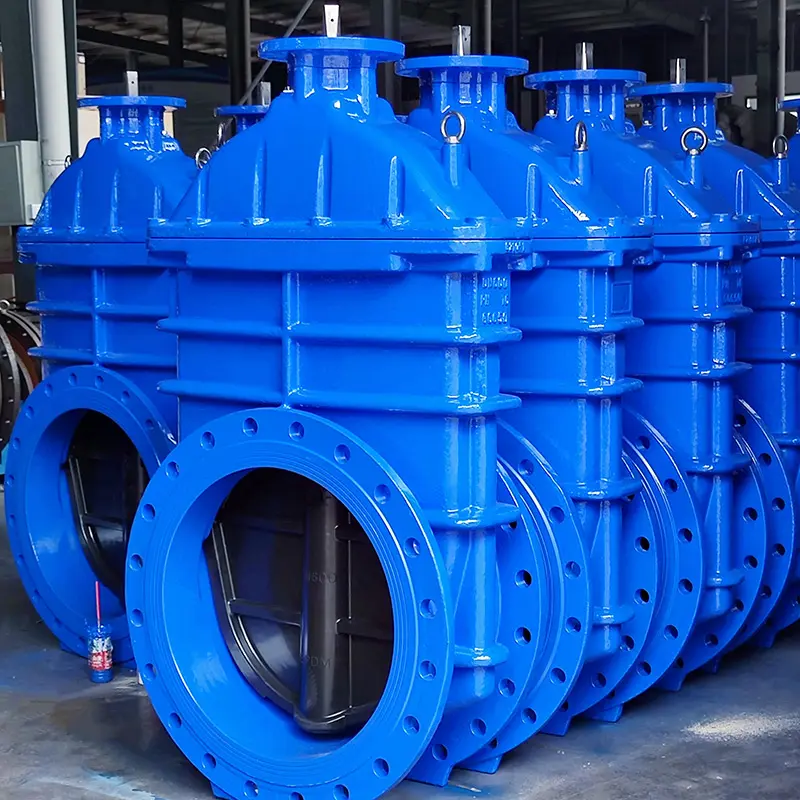

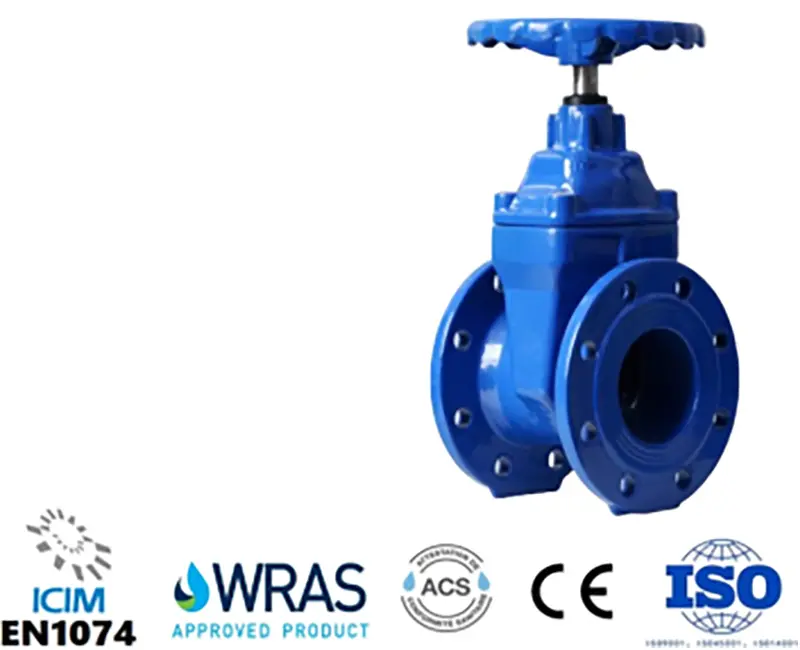

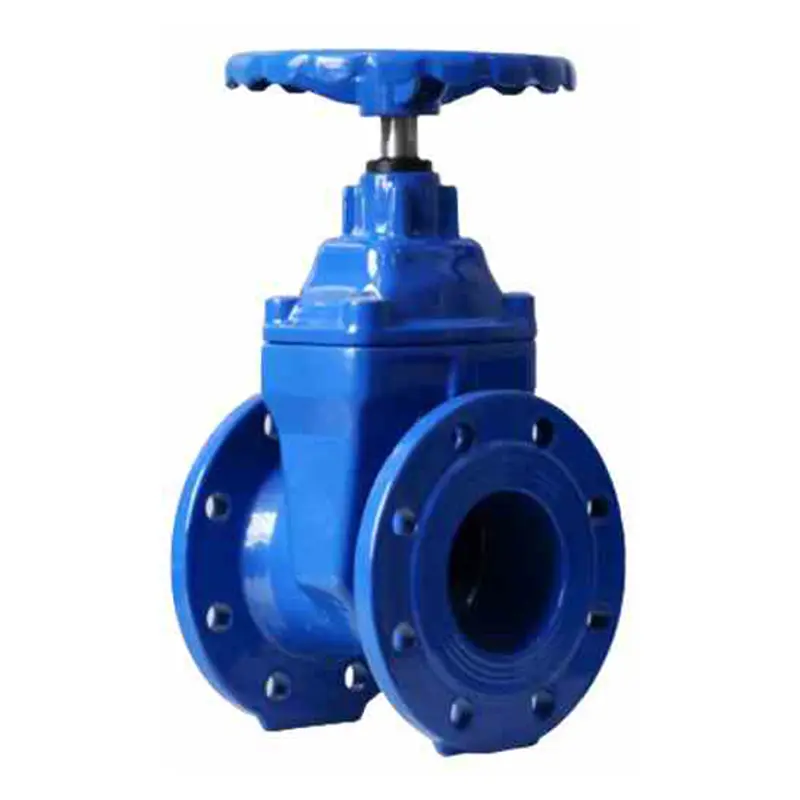

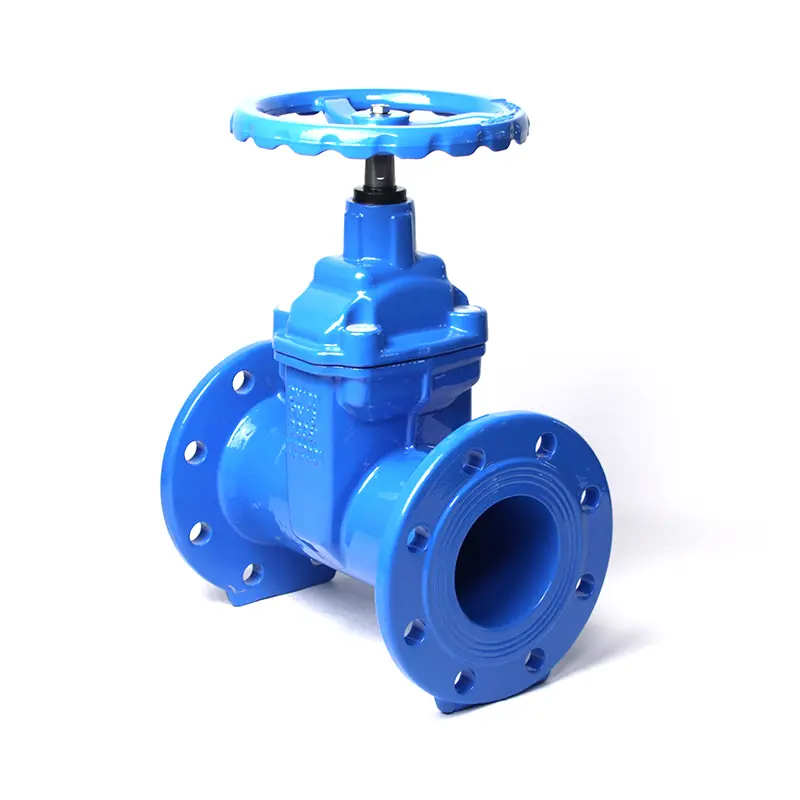

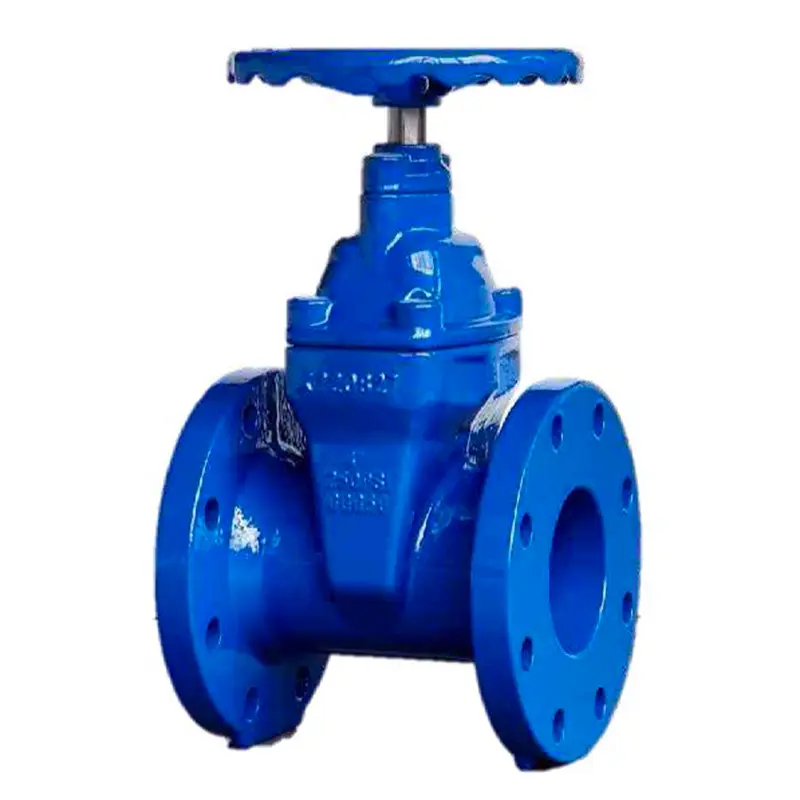

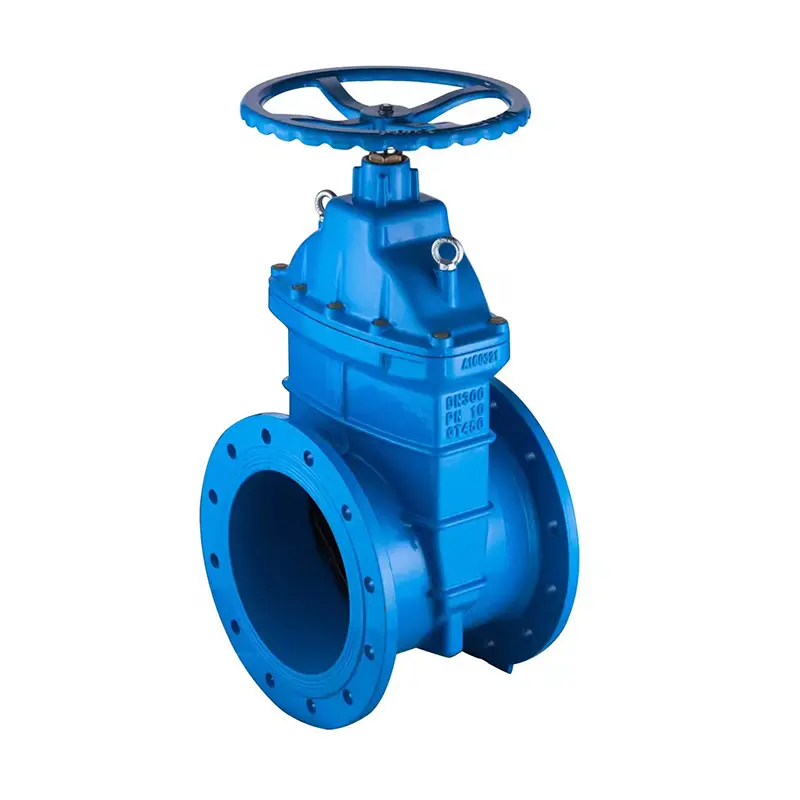

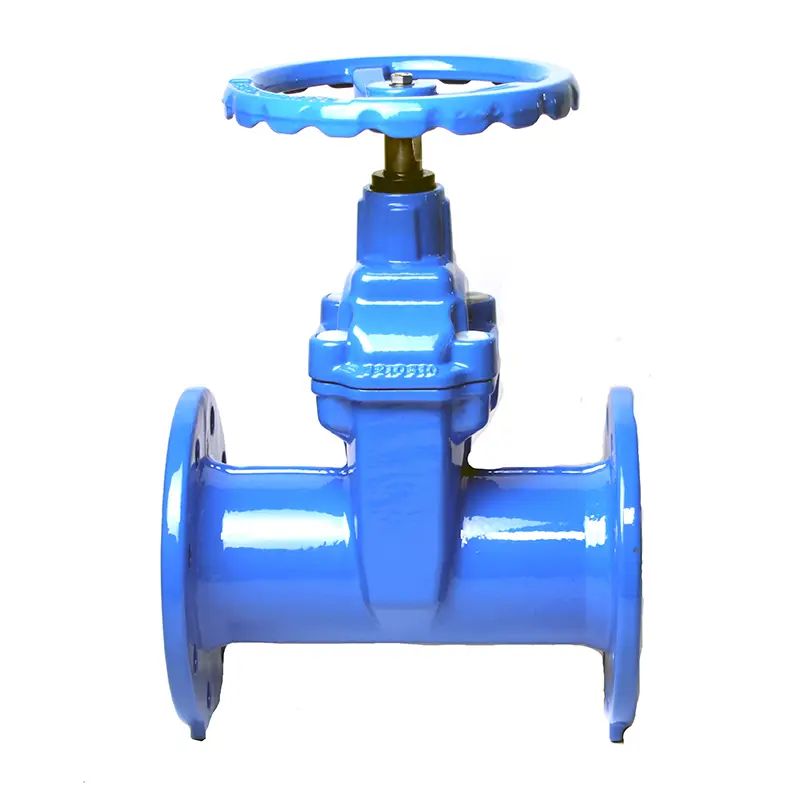

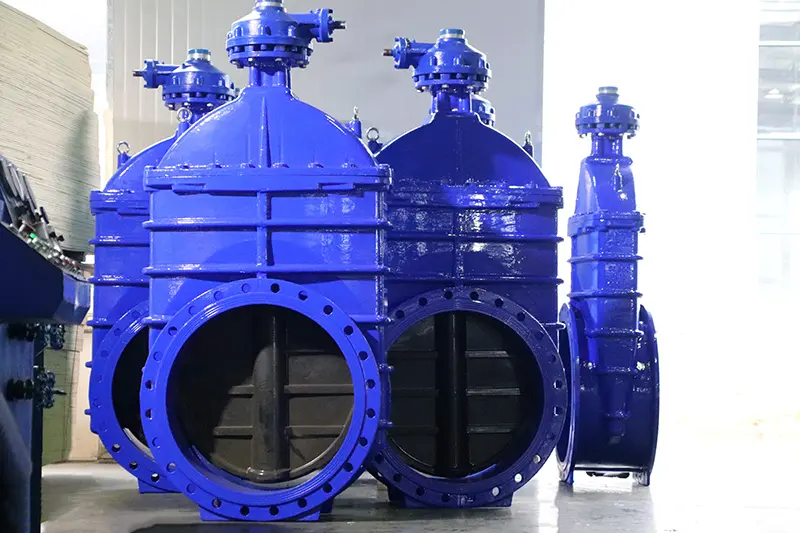

Resilient Seated Gate Valve

which is designed and manufactured for use in water, waste water, and sewage. Main usage is for isolation purposes. Full bore design makes it possible to be used bi-directionally and the fluid could clean the sealing surface area every time the valve is opened.

Main Features

● Huge convenience in daily water-using and repairing

● If sealing parts in the bonnet are broken, we could replace the sealing parts with the valve completely open when the valve is still in the pipeline.

● Class A sealing (ZERO LEAKAGE)

● 100% testing before packing and delivery.

● Completely free and full bore self-cleaning & low-pressure loss.

● Clockwise closing (CWC) as standard, anticlockwise closing upon request.

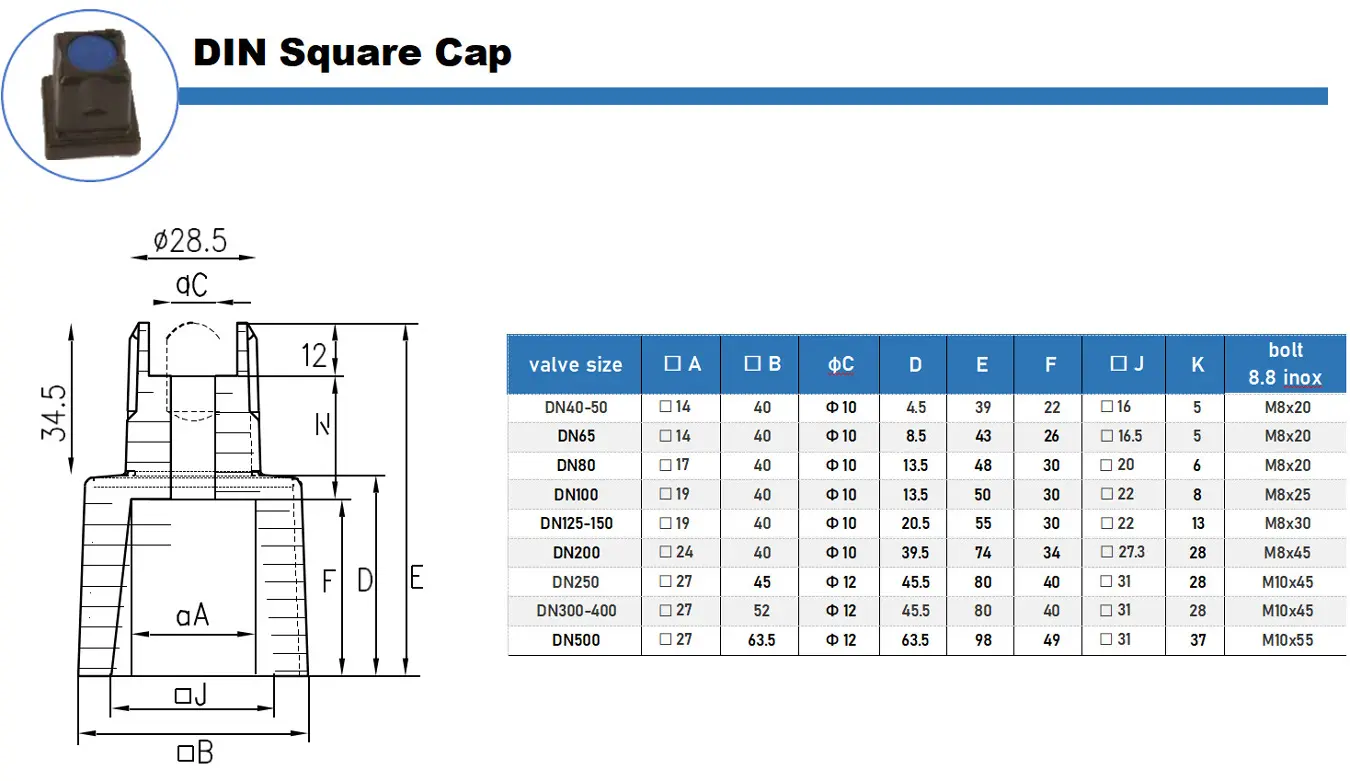

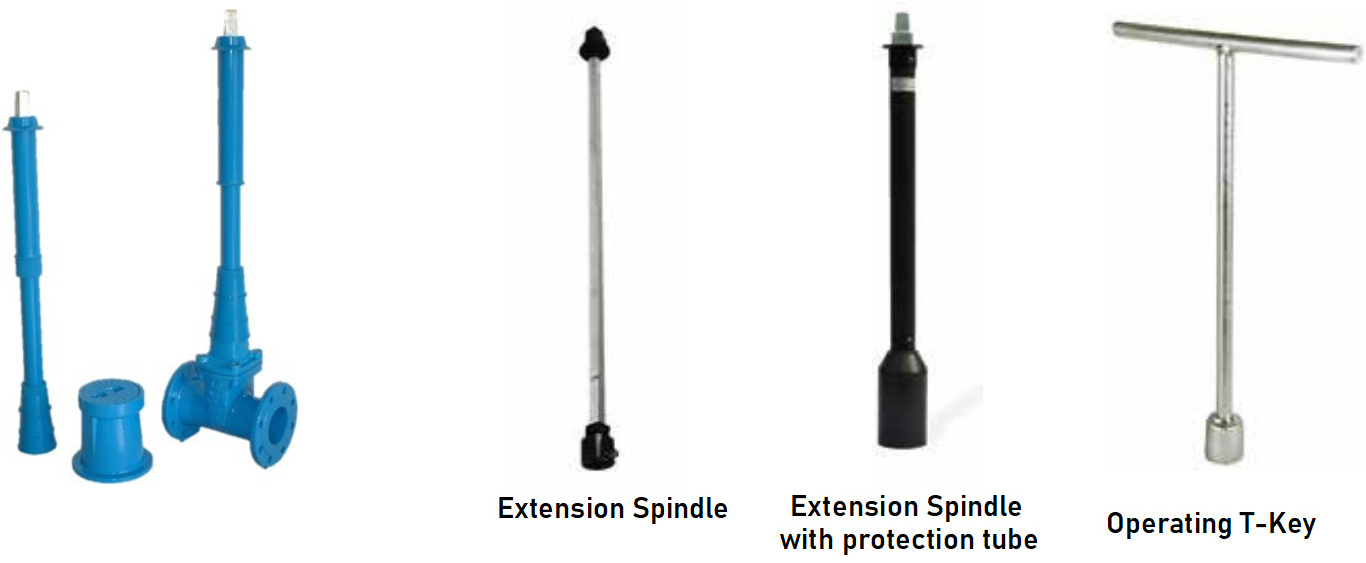

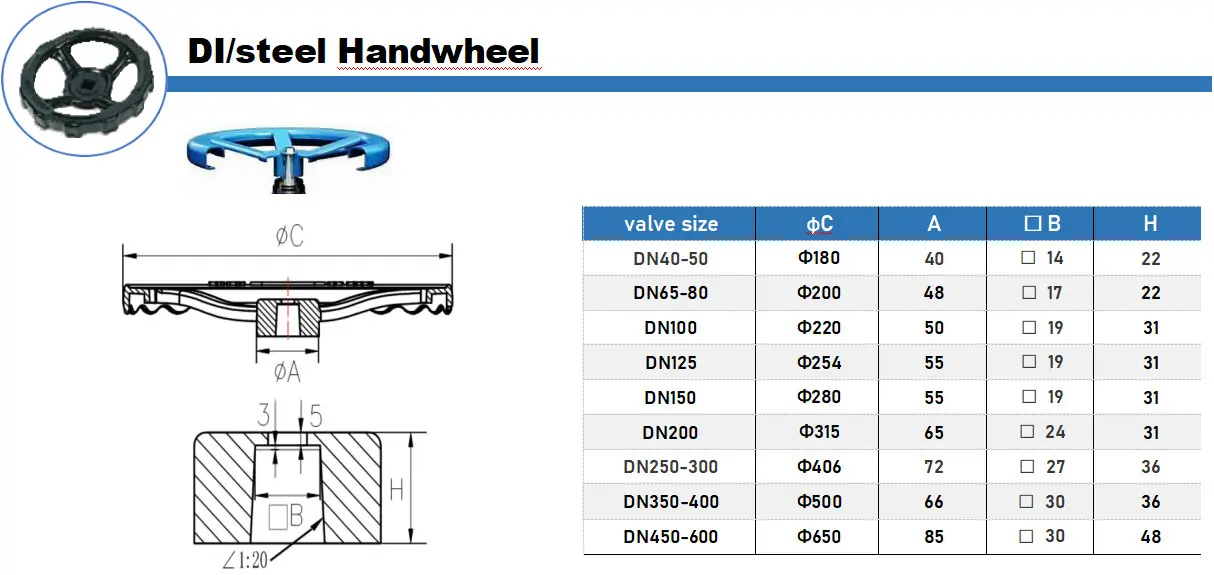

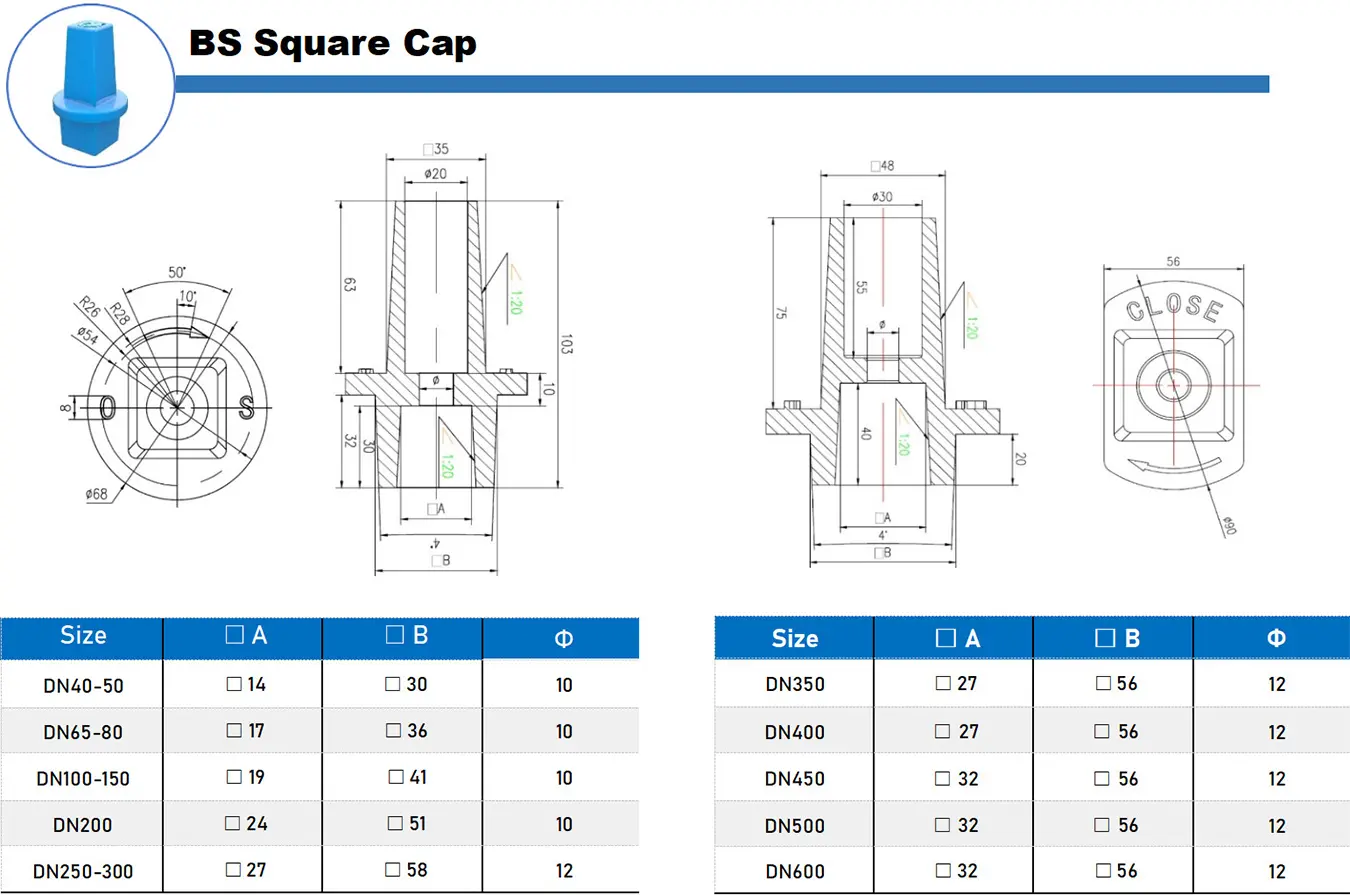

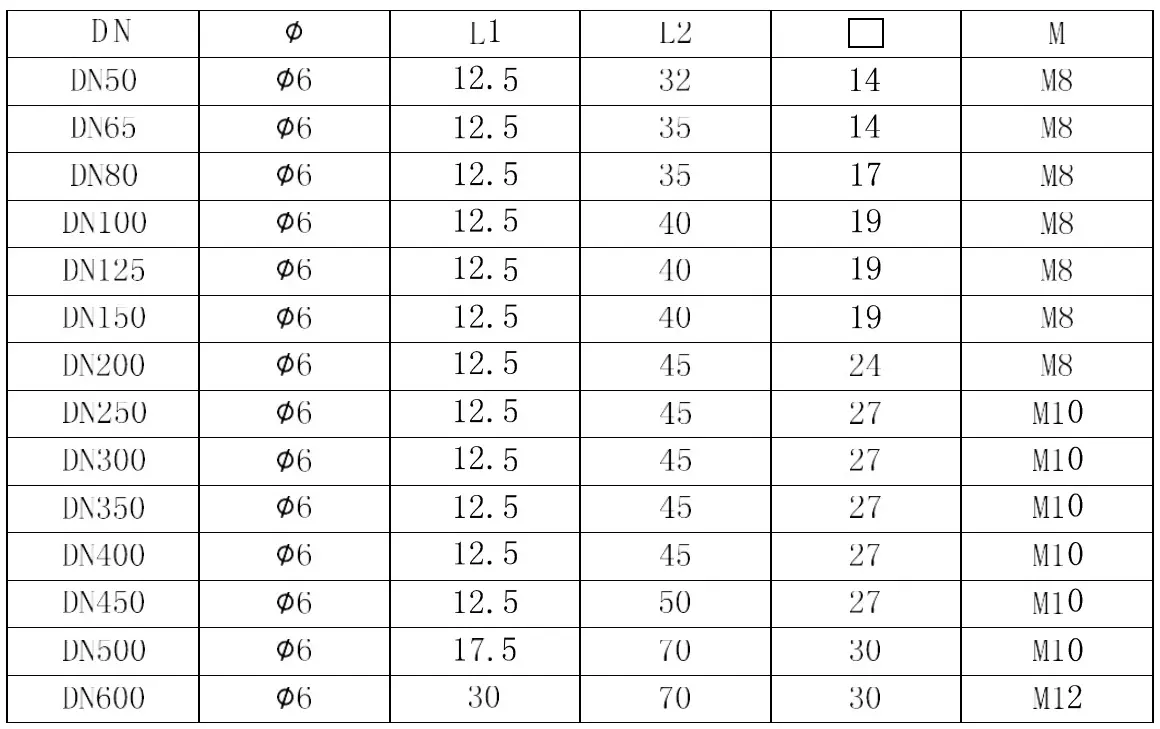

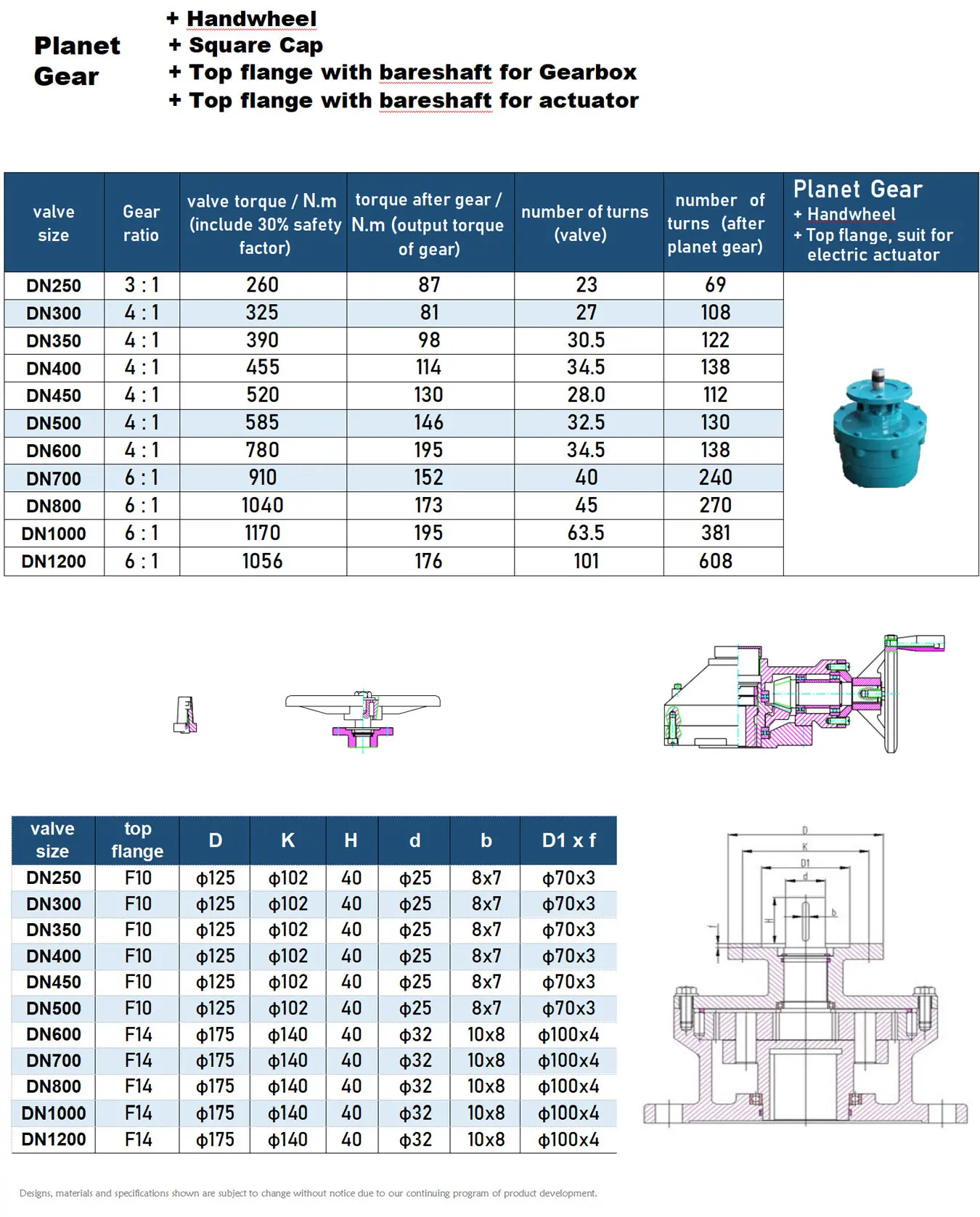

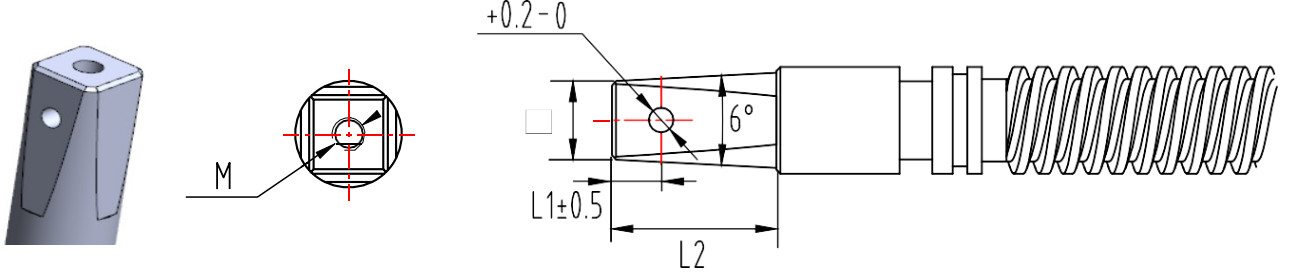

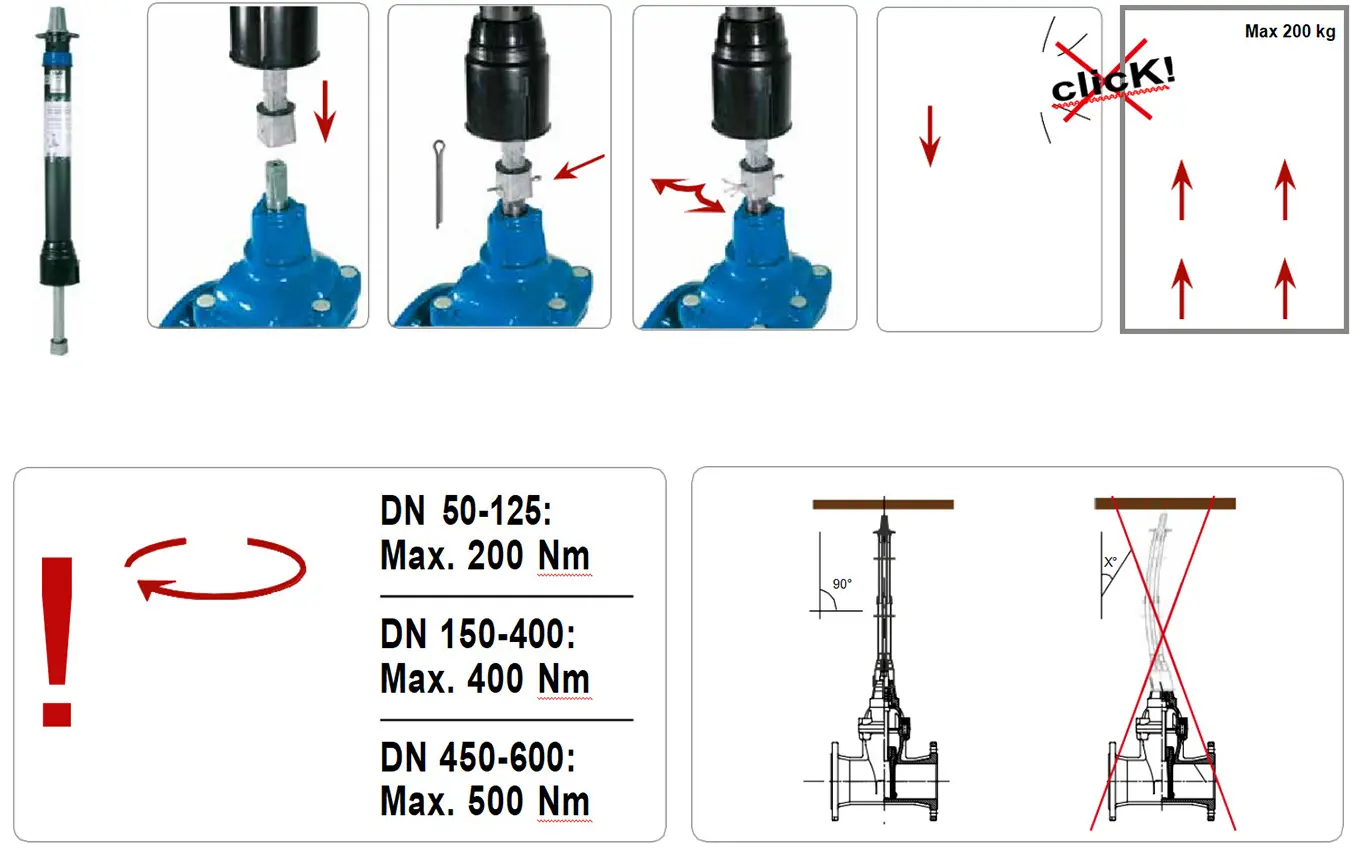

● Operation: Manual handwheel, Square Cap, Extension Spindle.

● Bonnet bolts are in Galvanized Carbon Steel, and sealed with hot melt to prevent corrosion. Other materials upon request.

● O-ring bonnet gasket wraps each bolt to prevent corrosion.

● Linear sealing design provides better sealing & lower closing torque.

● Potable water approved epoxy coating, fusion bonded according DIN 3476-1, EN 14901

Standards

● Hydraulic tests according to EN-12266-1, Class A

● Designed to EN-1074

● Flanges to EN-1092-2, BS4504

Service Fields

● Water and neutral liquid applications

● Main transmission pipelines

● Irrigation system

● Fire fighting

Technical details

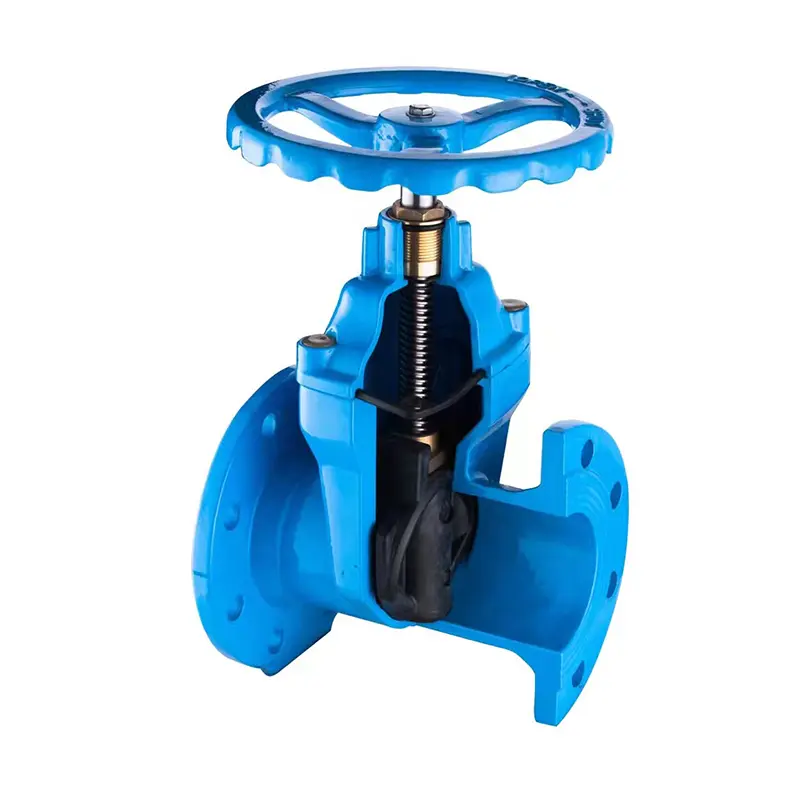

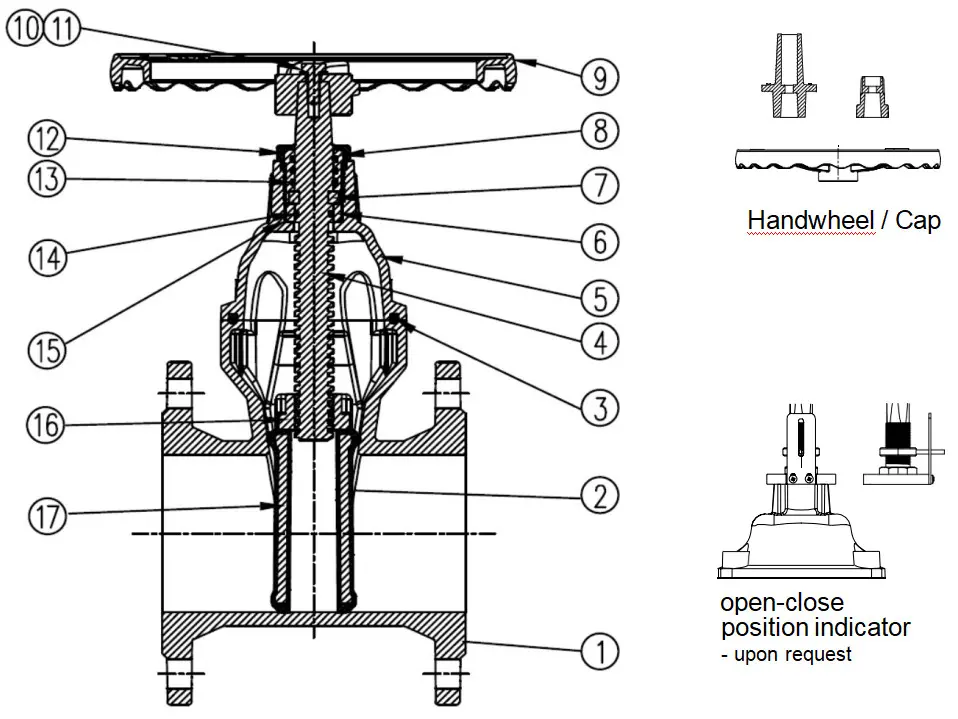

No.	Component	Standard Material	Optional upon request
1	Body	Ductile Iron GJS 500-7	Ductile Iron GJS 400-7
2	Disc	Ductile Iron + EPDM	Ductile Iron + WRAS Approved EPDM
3	Bonnet Gasket	NBR	EPDM / WRAS Approved EPDM
4	Stem	Stainless Steel AISI 420	AISI 431 / 304 / 316 / 316L / Duplex
5	Bonnet	Ductile Iron GJS 500-7	Ductile Iron GJS 400-7
6	Thrust Washer	Brass	Bronze / Dezincification Brass
7	Holding Ring	Brass	Bronze / Dezincification Brass
8	Thrust Nut	Brass	Bronze / Dezincification Brass
9	Handwheel / Cap	Ductile Iron GJS 500-7
10	Handwheel Bolt	Stainless Steel AISI 304	Stainless Steel AISI 316
11	Flat Washer	Stainless Steel AISI 304	Stainless Steel AISI 316
12	Dust Cover	NBR	EPDM / WRAS Approved EPDM
13	O-Ring	NBR	EPDM / WRAS Approved EPDM
14	O-Ring	NBR	EPDM / WRAS Approved EPDM
15	O-Ring	NBR	EPDM / WRAS Approved EPDM
16	Stem Nut	Brass	Bronze / Dezincification Brass
17	Disc Core	Ductile Iron GJS 500-7
18	Bonnet bolts	Galvanized carbon steel	Stainless Steel AISI 304 / 316

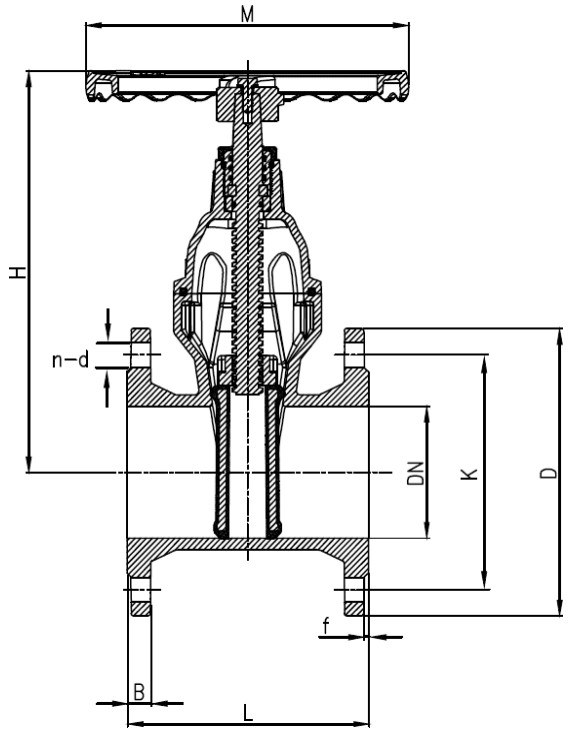

Dimensions

SIZE	Outline (mm)					Flange dimensions (mm)										Switch Turns	Closing Torque (N.m)
SIZE	BS5163	DIN-F4	DIN-F5	M	H	EN1092 - 2, PN10/16					EN1092 - 2, PN25
DN	L			M	H	D	K	n-d	B	f	D	K	n-d	B	f
DN40	165	140	240	Φ200	215	150	110	4-φ19	19	3	150	110	4-φ19	19	3	9	30
DN50	178	150	250	Φ200	215	165	125	4-φ19	19	3	165	125	4-φ19	19	3	9	40
DN65	190	170	270	Φ200	250	185	145	4-φ19	19	3	185	145	8-φ19	19	3	10	50
DN80	203	180	280	Φ200	275	200	160	8-φ19	19	3	200	160	8-φ19	19	3	12	60
DN100	229	190	300	Φ254	320	220	180	8-φ19	19	3	235	190	8-φ23	19	3	12	80
DN125	254	200	325	Φ315	365	250	210	8-φ19	19	3	270	220	8-φ28	19	3	14.5	100
DN150	267	210	350	Φ315	400	285	240	8-φ23	19	3	300	250	8-φ28	20	3	17	120
DN200	292	230	400	Φ315	495	200	160	8-φ23/12-φ23	20	3	360	310	12-φ28	22	3	18.5	150
DN250	330	250	450	Φ406	590	220	180	12-φ23/12-φ28	22	3	425	370	12-φ31	24.5	3	23	200
DN300	356	270	500	Φ406	670	250	210	12-φ23/12-φ28	24.5	4	485	430	16-φ31	27.5	4	27	250
